OAI静的リポジトリおよびOAI静的リポジトリゲートウェイ仕様書

<?xml version="1.0" encoding="UTF-8"?>
<Repository xmlns="http://www.openarchives.org/OAI/2.0/static-repository"
            xmlns:oai="http://www.openarchives.org/OAI/2.0/"
            xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
            xsi:schemaLocation="http://www.openarchives.org/OAI/2.0/static-repository
                                http://www.openarchives.org/OAI/2.0/static-repository.xsd">
  <Identify>
    <oai:repositoryName>Demo repository</oai:repositoryName>
    <oai:baseURL>http://gateway.institution.org/oai/an.oai.org/ma/mini.xml</oai:baseURL>
    <oai:protocolVersion>2.0</oai:protocolVersion>
    <oai:adminEmail>jondoe@oai.org</oai:adminEmail>
    <oai:earliestDatestamp>2002-09-19</oai:earliestDatestamp>
    <oai:deletedRecord>no</oai:deletedRecord>
    <oai:granularity>YYYY-MM-DD</oai:granularity>
  </Identify>
  <ListMetadataFormats>
    <oai:metadataFormat>
      <oai:metadataPrefix>oai_dc</oai:metadataPrefix>
      <oai:schema>http://www.openarchives.org/OAI/2.0/oai_dc.xsd</oai:schema>
      <oai:metadataNamespace>http://www.openarchives.org/OAI/2.0/oai_dc/</oai:metadataNamespace>
    </oai:metadataFormat>
    <oai:metadataFormat>
      <oai:metadataPrefix>oai_rfc1807</oai:metadataPrefix>
      <oai:schema>http://www.openarchives.org/OAI/1.1/rfc1807.xsd</oai:schema>
      <oai:metadataNamespace>http://info.internet.isi.edu:80/in-notes/rfc/files/rfc1807.txt</oai:metadataNamespace>
    </oai:metadataFormat>
  </ListMetadataFormats>
  <ListRecords metadataPrefix="oai_dc">
    <oai:record>
      <oai:header>
        <oai:identifier>oai:arXiv:cs/0112017</oai:identifier>
        <oai:datestamp>2001-12-14</oai:datestamp>
      </oai:header>
      <oai:metadata>
        <oai_dc:dc
            xmlns:oai_dc="http://www.openarchives.org/OAI/2.0/oai_dc/"
            xmlns:dc="http://purl.org/dc/elements/1.1/"
            xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
            xsi:schemaLocation="http://www.openarchives.org/OAI/2.0/oai_dc/
                                http://www.openarchives.org/OAI/2.0/oai_dc.xsd">
          <dc:title>Using Structural Metadata to Localize Experience of
                    Digital Content</dc:title>
          <dc:creator>Dushay, Naomi</dc:creator>
          <dc:subject>Digital Libraries</dc:subject>
          <dc:description>With the increasing technical sophistication of
            both information consumers and providers, there is
            increasing demand for more meaningful experiences of digital
            information. We present a framework that separates digital
            object experience, or rendering, from digital object storage
            and manipulation, so the rendering can be tailored to
            particular communities of users.
          </dc:description>
          <dc:description>Comment: 23 pages including 2 appendices,
            8 figures</dc:description>
          <dc:date>2001-12-14</dc:date>
        </oai_dc:dc>
      </oai:metadata>
    </oai:record>
    <oai:record>
      <oai:header>
        <oai:identifier>oai:perseus:Perseus:text:1999.02.0084</oai:identifier>
        <oai:datestamp>2002-05-01</oai:datestamp>
      </oai:header>
      <oai:metadata>
        <oai_dc:dc
            xmlns:oai_dc="http://www.openarchives.org/OAI/2.0/oai_dc/"
            xmlns:dc="http://purl.org/dc/elements/1.1/"
            xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
            xsi:schemaLocation="http://www.openarchives.org/OAI/2.0/oai_dc/
                                http://www.openarchives.org/OAI/2.0/oai_dc.xsd">
          <dc:title>Germany and its Tribes</dc:title>
          <dc:creator>Tacitus</dc:creator>
          <dc:type>text</dc:type>
          <dc:source>Complete Works of Tacitus. Tacitus. Alfred John Church.
            William Jackson Brodribb. Lisa Cerrato. edited for Perseus.
            New York: Random House, Inc. Random House, Inc. reprinted 1942.
          </dc:source>
          <dc:identifier>http://www.perseus.tufts.edu/cgi-bin/ptext?
            doc=Perseus:text:1999.02.0083</dc:identifier>
        </oai_dc:dc>
      </oai:metadata>
    </oai:record>
  </ListRecords>
  <ListRecords metadataPrefix="oai_rfc1807">
    <oai:record>
      <oai:header>
        <oai:identifier>oai:arXiv:cs/0112017</oai:identifier>
        <oai:datestamp>2001-12-14</oai:datestamp>
      </oai:header>
      <oai:metadata>
        <rfc1807
            xmlns="http://info.internet.isi.edu:80/in-notes/rfc/files/rfc1807.txt"
            xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
            xsi:schemaLocation="http://info.internet.isi.edu:80/in-notes/rfc/files/rfc1807.txt
                                http://www.openarchives.org/OAI/1.1/rfc1807.xsd">
          <bib-version>v2</bib-version>
          <id>cs/0112017</id>
          <entry>December 23, 2001</entry>
          <title>Using Structural Metadata to Localize Experience of
             Digital Content</title>
          <author>Naomi Dushay</author>
          <date>December 14, 2001</date>
        </rfc1807>
      </oai:metadata>
      <oai:about>
        <oai_dc:dc
            xmlns:oai_dc="http://www.openarchives.org/OAI/2.0/oai_dc/"
            xmlns:dc="http://purl.org/dc/elements/1.1/"
            xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
            xsi:schemaLocation="http://www.openarchives.org/OAI/2.0/oai_dc/
                                http://www.openarchives.org/OAI/2.0/oai_dc.xsd">
          <dc:publisher>Los Alamos arXiv</dc:publisher>
          <dc:rights>Metadata may be used without restrictions as long as
            the oai identifier remains attached to it.</dc:rights>
        </oai_dc:dc>
      </oai:about>
    </oai:record>
  </ListRecords>
</Repository>

<?xml version="1.0" encoding="UTF-8"?>
<OAI-PMH xmlns="http://www.openarchives.org/OAI/2.0/"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://www.openarchives.org/OAI/2.0/
                             http://www.openarchives.org/OAI/2.0/OAI-PMH.xsd">
  <responseDate>2002-02-08T12:00:01Z</responseDate>
  <request verb="Identify">http://gateway.institution.org/oai/an.oai.org/ma/mini.xml</request>
  <Identify>
    <repositoryName>Demo repository</repositoryName>
    <baseURL>http://gateway.institution.org/oai/an.oai.org/ma/mini.xml</baseURL>
    <protocolVersion>2.0</protocolVersion>
    <adminEmail>jondoe@oai.org</adminEmail>
    <earliestDatestamp>2002-09-19</earliestDatestamp>
    <deletedRecord>no</deletedRecord>
    <granularity>YYYY-MM-DD</granularity>
    <description>
      <friends
          xmlns="http://www.openarchives.org/OAI/2.0/friends/"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://www.openarchives.org/OAI/2.0/friends/
                              http://www.openarchives.org/OAI/2.0/friends.xsd">
        <baseURL>http://gateway.institution.org/oai/site1.org/mini/file1</baseURL>
        <baseURL>http://gateway.institution.org/oai/loca.org%3A8080/data</baseURL>
        <baseURL>http://gateway.institution.org/oai/univ.edu/lib/pubs.xml</baseURL>
      </friends>
    </description>
    <description>
      <gateway
          xmlns="http://www.openarchives.org/OAI/2.0/gateway/"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://www.openarchives.org/OAI/2.0/gateway/
                              http://www.openarchives.org/OAI/2.0/gateway.xsd">
        <source>http://an.oai.org/ma/mini.xml</source>
        <gatewayDescription>http://www.openarchives.org/OAI/2.0/guidelines-static-repository.htm</gatewayDescription>
        <gatewayAdmin>pat@institution.org</gatewayAdmin>
        <gatewayURL>http://gateway.institution.org/oai/</gatewayURL>
      </gateway>
    </description>
  </Identify>
</OAI-PMH>

<?xml version="1.0" encoding="utf-8"?>
<schema targetNamespace="http://www.openarchives.org/OAI/2.0/static-repository"
        xmlns="http://www.w3.org/2001/XMLSchema"
        xmlns:sr="http://www.openarchives.org/OAI/2.0/static-repository"
        xmlns:oai="http://www.openarchives.org/OAI/2.0/"
        elementFormDefault="qualified"
        attributeFormDefault="unqualified">

  <import namespace="http://www.openarchives.org/OAI/2.0/"
          schemaLocation="http://www.openarchives.org/OAI/2.0/OAI-PMH-static-repository.xsd"/>

  <annotation>
    <documentation>
    This XML Schema specifies the structure of an OAI-PMH Static Repository.
    A Static Repository is an XML file that is valid according to this XML
    Schema and is described in
    http://www.openarchives.org/OAI/2.0/guidelines-static-repository.htm

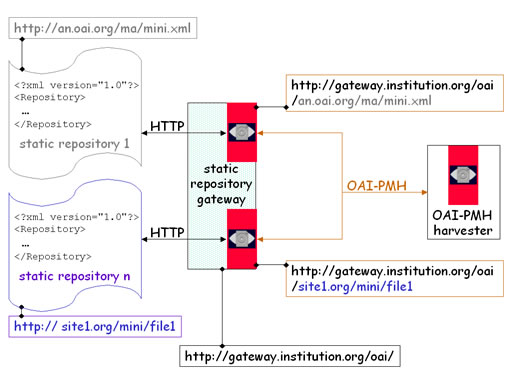

    A Static Repository is made accessible as an XML file on a standard
    web-server. No special software is required at the end of the organization
    that makes the Static Repository available. A Static Repository becomes
    harvestable via the OAI-PMH through the intermediation of a Static
    Repository Gateway.

    This Static Repository XML Schema by Herbert Van de Sompel and Henry N.
    Jerez (Los Alamos National Laboratory, Research Library, Digital Library
    Research and Prototyping Team; original 2002-10-26), and Simeon Warner
    (Cornell University). Inspired by the Vida work by Steven Bird for OAI-PMH
    v1.0 and for the Open Languages Archives Community; see
    http://www.language-archives.org/docs/implement.html#Vida

    Beta2 release: 2004-03-30
    Release: 2004-04-23
    $Date: 2004/04/23 15:17:46 $
    </documentation>
  </annotation>

  <element name="Repository" type="sr:RepositoryType"/>

  <complexType name="RepositoryType">
    <annotation>
      <documentation>The Repository element has 2 child elements, Identify
      and ListMetadataFormats, that are derived from the OAI-PMH v2.0 XML
      Schema. The third element, ListRecords, is repeatable and is an
      extension of the ListRecords defined in the OAI-PMH v2.0 XML Schema;
      it has an additional attribute indicating the metadataPrefix of the
      included metadata records.
      </documentation>
    </annotation>
    <sequence>
      <element name="Identify" type="oai:IdentifyType"/>
      <element name="ListMetadataFormats" type="oai:ListMetadataFormatsType"/>
      <element name="ListRecords" type="sr:ListRecordsType" maxOccurs="unbounded"/>
    </sequence>
  </complexType>

  <complexType name="ListRecordsType">
    <annotation>
      <documentation>The ListRecords element contains all records with
      metadata expressed in one of the metadata formats supported by the
      Static Repository. The mandatory metadataPrefix attribute specifies the
      metadataPrefix of the included metadata; it must correspond with a value
      of the metadataPrefix element contained in the ListMetadataFormats
      element.
      </documentation>
    </annotation>
    <complexContent>
      <extension base="oai:ListRecordsType">
        <attribute name="metadataPrefix" type="oai:metadataPrefixType" use="required"/>
      </extension>
    </complexContent>
  </complexType>

</schema>

<schema targetNamespace="http://www.openarchives.org/OAI/2.0/"
        xmlns="http://www.w3.org/2001/XMLSchema"
        xmlns:oai="http://www.openarchives.org/OAI/2.0/"
        elementFormDefault="qualified"
        attributeFormDefault="unqualified">

  <annotation>
    <documentation>This schema restricts the contents a number of elements in
    the OAI-PMH v2.0 schema for use with the static repository schema:
    http://www.openarchives.org/OAI/2.0/static-repository.xsd
    All elements remain in the namespace http://www.openarchives.org/OAI/2.0/
    used by OAI-PMH v2.0 and element instances accepted by these restricted
    definitions would be valid according to the main schema:
    http://www.openarchives.org/OAI/2.0/OAI-PMH.xsd
    Simeon Warner (Cornell University), 2004-02-12.

    Release: 2004-04-23
    $Date: 2004/05/11 14:40:07 $
    </documentation>
  </annotation>

  <redefine schemaLocation="http://www.openarchives.org/OAI/2.0/OAI-PMH.xsd">

  <complexType name="ListRecordsType">
    <annotation>
      <documentation>ListRecords block restricted so that it must not include a
      resumptionToken element.</documentation>
    </annotation>
    <complexContent>
      <restriction base="oai:ListRecordsType">
        <sequence>
          <element name="record" type="oai:recordType" maxOccurs="unbounded"/>
        </sequence>
      </restriction>
    </complexContent>
  </complexType>

  <complexType name="IdentifyType">
    <annotation>
      <documentation>Identify block restricted so that it must not include a
      compression element. Some element types also restricted.</documentation>
    </annotation>
    <complexContent>
      <restriction base="oai:IdentifyType">
        <sequence>
          <element name="repositoryName" type="string"/>
          <element name="baseURL" type="anyURI"/>
          <element name="protocolVersion" type="oai:protocolVersionType"/>
          <element name="adminEmail" type="oai:emailType" maxOccurs="unbounded"/>
          <element name="earliestDatestamp" type="oai:UTCdatetimeType"/>
          <element name="deletedRecord" type="oai:deletedRecordType"/>
          <element name="granularity" type="oai:granularityType"/>
          <element name="description" type="oai:descriptionType"
                   minOccurs="0" maxOccurs="unbounded"/>
        </sequence>
      </restriction>
    </complexContent>
  </complexType>

  <complexType name="recordType">
    <annotation>
      <documentation>All records must have header and metadata. As deleted
      records are not supported it is not permissible to have header
      only.</documentation>
    </annotation>
    <complexContent>
      <restriction base="oai:recordType">
        <sequence>
          <element name="header" type="oai:headerType"/>
          <element name="metadata" type="oai:metadataType"/>
          <element name="about" type="oai:aboutType"
                   minOccurs="0" maxOccurs="unbounded"/>
        </sequence>
      </restriction>
    </complexContent>
  </complexType>

  <complexType name="headerType">
    <annotation>
      <documentation>The header element must not contain any setSpec elements
      or a status attribute.</documentation>
    </annotation>
    <complexContent>
      <restriction base="oai:headerType">
        <sequence>
          <element name="identifier" type="oai:identifierType"/>
          <element name="datestamp" type="oai:UTCdatetimeType"/>
        </sequence>
        <attribute name="status" type="oai:statusType" use="prohibited"/>
      </restriction>
    </complexContent>
  </complexType>

  <simpleType name="granularityType">
    <annotation>
      <documentation>The only granularity permitted is YYYY-MM-DD.</documentation>
    </annotation>
    <restriction base="oai:granularityType">
      <enumeration value="YYYY-MM-DD"/>
    </restriction>
  </simpleType>

  <simpleType name="deletedRecordType">
    <annotation>
      <documentation>As deleted records are not supported, the deletedRecord
      element may only have the value 'no'.</documentation>
    </annotation>
    <restriction base="oai:deletedRecordType">
       <enumeration value="no"/>
    </restriction>
  </simpleType>

  </redefine>
</schema>
